HAROLD H. BROWN INSULATOR

In early 1993, Otto Boll donated to my Research Files a thick notebook about the development of the Harold H. Brown insulator (Locke insulators with metal crown) and a porcelain insulator patent model that represents one of two styles claimed in Mr. Brown's original patent application. Note that I did not say the insulator represented Mr. Brown's patent. Furthermore, most of us thought that the various specimens of Locke metal crown insulator were based on the Brown patent which isn't exactly true -- more on that later in this article. I promised Otto an article on the Brown insulator, and it has been long coming. I hope that I can do it justice and get the facts correct. There is too much information in the notebook to include in one PIN article, and much of it is too technical for general interest anyway. It has been a struggle wading through all of it, and I hope that I recorded the story correctly and make it fairly easy for you to follow.

Otto worked in the engineering department of the Wisconsin Michigan Power Co. at Appleton, WI. Otto's boss in the late 1930's and early 1940's was Harold H. Brown, Chief Electrical Engineer. The WMP Co. served the east central part of Wisconsin and the central part of the Upper Peninsula of Michigan. Otto said, "The somewhat isolated areas (especially in Michigan) made it necessary to limit power line interference to a minimum to enhance radio reception in the areas. I worked for Mr. Brown during the later 1930's and can remember working on a project to get an AM radio station moved from Iron Mountain (which had two stations) to Iron River, MI. We were having many radio interference problems with a 69 Kv line going through town."

During the 1930's and 1940's, all companies manufacturing high voltage insulators were experimenting with ways to solve the radio frequency interference (RFI) problems cause by the corona effect around the insulator crown where the conductor is attached to the insulator. AM radios were particularly susceptible to the problem of spurious radio signals, and, as Otto pointed out, the problem was very acute in areas where radio signals were weak (at the edge of reception areas). RFI was rapidly becoming a problem during this time period because many new high voltage lines were being installed in an effort to supply every home in America with electrical power (remember the REA act which brought electrical power to rural areas), transmission voltages were increasing, and the number of radios in use was rapidly growing as many homeowners soon purchased a radio after receiving electrical power.

RFI is caused by electrical corona. The corona effect is the result of an electrical imbalance at the point of contact between the conductor and insulator. For pin-type insulators the corona generally first forms between the tie-wire and the porcelain insulator. The electrical flux flow through the air gap between the porcelain and the tie-wire is the largest contributing factor for RFI. In most cases, the RFI disturbance is created at voltages less than the voltage the insulator normally operates. The noise created is audible to the human ear and also with radio receivers. The radio frequencies generated range from low to high frequencies so all AM radio channels are affected. About the same time that the audible noise and RFI disturbance is detected, a glow or corona formation is noticeable in darkness. Insulators not designed to reduce RFI may produce RFI at a potential as low as 6 Kv for a 20 Kv insulator.

Ways of preventing or reducing RFI concern making the crown more conductive. Originally the tie-wire was wrapped several times around the crown. Thin porcelain shells reduce RFI because they increase the electrical flux through the porcelain. For example, two-part insulators have a lower RFI level than three-part insulators designed for the same voltage service because the overall porcelain thickness is greater for a three-part insulator. Various metallic coatings on both the crown and inside the pinhole (or use of metal thimbles) increase the electrical flux and decrease the RFI effect. Sprayed on metal coatings and fired on metal coatings on porcelain insulators where the edge of the coating is thin show a small amount of corona occasionally on the outer edge of the metal. This small glow of corona represents a very little RFI effect. However, for thicker coatings that present an abrupt edge above the porcelain, additional improvement in RFI was experienced where a groove was cut into the porcelain so the metal coating ran flush against the edge of the groove in the porcelain. When metal coatings were used, the tie-wire was wrapped several times around the crown to prevent a loose tie-wire or conductor from rubbing through the coating. Copper conductors and tie-wires should always be used with a copper coating and aluminum for aluminum coatings.

Mr. Brown conceived of a novel design to reduce the corona effect by using a metal crown on a porcelain insulator. He conducted numerous day and night RFI tests beginning on December 18, 1930. Over seventy recorded tests were made with different insulator styles and arrangements of insulators and hardware before the merits of balanced stress was considered and new designs incorporating this concept were experimentally tried in the laboratory. On February 2, 1931, a design using a turned bronze cap and standard lineman's tie was tested. On February 20, 1931, the sphere ball design with metal crown was tested (see photograph 1). The first test was not completely successful and changes were made.

Photo 1: First experimental sphere ball design with bronze crown.

Next a more typical design was employed which had a skirt, petticoat, and threaded pinhole. Two designs were tested. One design used a bronze crown inserted in the top of the porcelain shell and the other design used a bronze crown with a convex base that fit over the top of the porcelain shell and into a recessed area (see photograph 2 and 3).

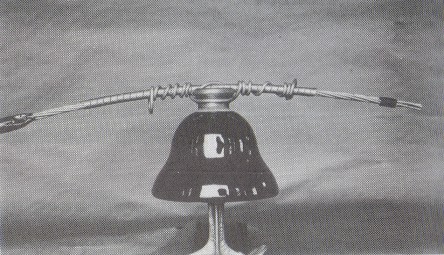

Photo 2: Convex-shaped bronze metal crown cemented into recess cut
into the top surface of the insulator (see Figure 1).
This design is one covered by the H. H. Brown patent.

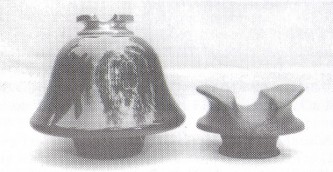

Photo 3: Plug-shaped bronze metal crown (see Figure 2).

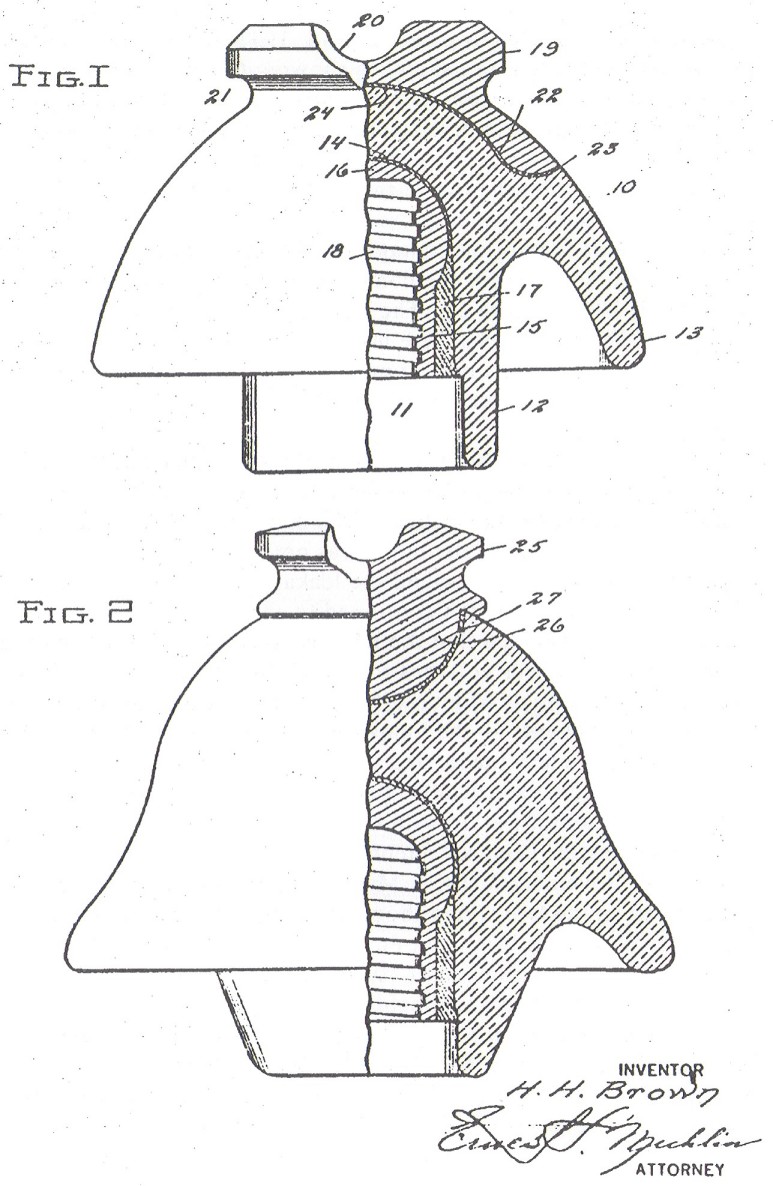

Figures 1 and 2 were submitted with the original patent application. Only Figure 1 was used when the patent was granted. Figure 2 is the design of the Brown patent model donated by Otto Boll.

Medium Image (74 Kb)
Large Image (187 Kb)

The Locke Insulator Corp. was interested in the work going on at the Wisconsin Michigan Power Co. and followed their efforts to develop a porcelain insulator that would have lower RFI properties. On February 25, 1931, representatives from Locke reviewed preliminary sketches of some of Mr. Brown's ideas for a new insulator. Another meeting on March 4, 1931, with another Locke representative led to more sketches showing two more of Mr. Brown's ideas. One design had a metal crown inserted into a hole in the top of the porcelain body and the other design had a metal crown with convex-shaped base which allowed it to be cemented into a recess cut into the top of the porcelain body. The metal crown insert design seemed more favorable and the final drawing embodying this feature was completed on March 18, 1931 (Figure 2). The final drawing for the convex crown design was completed on April 8, 1931 (Figure 1). The drawings were sent to Locke in Baltimore, and prototypes were made and tested. Tests were performed on the same two prototypes (Figures 1 and 2) on June 29, 1931, in Appleton, WI and on August 15, 1931, at the Locke factory in Baltimore.

Test results at the two laboratories were inconsistent and questions of cement degradation were brought up. A bakelite material was used for the cement. The original experimental ball design showed better results but it was not practical to use for wet weather (no petticoats to extend the leakage distance). Additional tests were performed which continued to show a large variation. It was finally concluded that the RFI characteristics are difficult to determine at the lower voltages for which the insulators would be used due to the effects of humidity and the sensitivity of their electrical instruments - the human ear. In all cases the two styles of insulator were acceptable and offered improvement in RFI. The style with the convex crown (Figure 1) offered the lowest RFI improvement, and the style with the metal crown inserted in the top offered the best RFI improvement.

On November 6, 1931, Mr. Harold H. Brown filed a patent application on the two styles shown in Figures 1 and 2. On March 29, 1932, Wisconsin Michigan Power Co. received a response from their inquiry into two insulator styles Jeffery-Dewitt Insulator Co. was making which had a malleable metal crown cemented (J-D alloy cement) into the top of their standard one-piece insulator (see illustration of J-D styles E-1056 and E-1032). These insulators were cast like the other one-piece J-D styles but without the standard crown. J-D set the selling price at not much more than their standard insulator. This information was forwarded to Locke's attorneys who assured them that there would be no interference with the Brown patent. This meant the Locke could not make a patent interference claim against J-D and prevent them from marketing their insulators. To make matters worse, Locke could not manufacture the Brown insulators at a modest increase in cost over their standard styles. The drawing for Locke's first insulator using the Brown design was made on May 9, 1932 and is shown here from Locke drawing No. U-74385. This style is essentially Locke No. 23526 in their 1941 catalog which has been assigned M-3650. Note that the metal crown design for drawing No. U-74385 was quite different from anything that Brown had either experimented with or shown in his patent application and also different from that shown in their 1941 catalog.

Jeffery-Dewitt styles E-1056 (left) for 45 Kv and E-1032 (right) for 66 Kv drawing dated in early 1932.

First insert-type Locke style shown in
drawing No. U-74385 dated May 9, 1932.

It is curious that Locke did not obtain legal assignment of the Brown patent until they received notice from the patent office on June 21, 1934, that the patent would be allowed. Mr. Brown made the legal assignment of patent rights to Locke on October 5, 1934. Note that Mr. Brown's patent application was changed by the patent office to exclude the plug-type design represented in Figure 2. The final patent No. 1,988,369 was granted on January 15, 1935 for the convex-shaped metal crown (Figure 1). Evidently no patent application was filed on Figure 2. All Locke's lawyers had to say about the matter was:

"You will note that there is but one figure of drawing and of course only one form of the invention disclosed. When we filed this case it had two forms, one in which the curved surfaces are concentric [convex-shaped crown], as in the patent, and the other in which the curved surfaces were opposed instead of parallel. It was impossible to draw an allowable claim covering both forms and it was therefore necessary to make an election, which we did as you will see."

Obviously Locke's lawyers worked on the matter a considerable length of time because the patent took more than three years to complete. Mr. Brown was undoubtedly very proud of his invention. His wife, Eleanora Brown (age 89), wrote in a letter to Otto Boll on March 18, 1993, "When Harold and I would drive, especially in Upper Michigan and Canada, Harold would point out "his" insulators. What surprised me was that after his death, we found none of these insulators."

Brown patent model based on design shown in the original patent application (Figure 2) but not in the final patent. The bronze metal crown is cemented in a hole formed in the top of the insulator. On the right is a cast iron crown used on the Locke multipart insert-type insulators.

Five multipart insert-type insulators in the 1941 Locke catalog.

Locke only used the Brown patent for multipart insulators, and they were referred to as "multipart insert-type, noiseless". The only Locke catalog that carried a line of the insert-type noiseless insulators was dated April 1, 1941. Five styles were illustrated and shown here.

Two other styles have been discovered. In each case the five-digit catalog number is shown under the incuse marking like this:

LOCKE
23529

Note the catalog number 23529 does not follow the standard size category. I would guess that M-3245 was manufactured after the 1941 catalog offering and perhaps for a higher voltage service than M-2770 was designed for. M-3245 was reported by Rick Soller (NIA #2958) who obtained it from Otto Boll. Jeff Kaminski (NIA #3582) sent the nice photograph of this unusual style. M-4343 was reported in January 1993 by Steve Jones (NIA #5426) and Jeff Kaminski. Four specimens of M-4343 have been reported. Note that four of the five styles cataloged in 1941 have NOT been reported. There must be some of these out there somewhere just waiting for one of you to bring it home. By the way, the 1941 Locke catalog shows a photograph of a line using the insert-type insulators in West Virginia (no town given). Following is a quote from the Locke catalog:

"The original noiseless pin-type insulator was developed and introduced by the Locke Insulator Corporation in 1931 and won immediate acceptance. It definitely corrected what in many cases had become an exceedingly acute annoyance and relieved operators of the necessity of using the temporary and costly expedients which until then had been the only corrective measures available.

After ten years of service this design has amply proved itself. The original installation is still 100 per cent intact and still absolutely noiseless as are all subsequent installations.

Even when installed within a few feet of highly sensitive sets Locke insert-type Noiseless insulators cannot cause interference nor do loose tie wires have any effect on their noise influence characteristics."

Locke M-3245  (10 - 8 - 5.5 x 11)

Locke M-4343  (14 - 11.5 - 9.5 - 7.5 x 15)
