   1982 >> September >> Foreign Insulators

Foreign Insulators
by Marilyn Albers

Reprinted from "INSULATORS - Crown Jewels of the Wire", September 1982, page 3

A Much Needed Map for Us Foreigners

Milholland's 1982 Price Guide has just recently become available. It lists foreign glass insulators under both old and new C.D. #'s, but in two different sections of the book! To avoid confusion, I thought this might be a good time, and
would serve a useful purpose, if I were to show you a complete cross reference list with both old C.D. #'s (as previously listed in Milholland's Most About Glass Insulators - Fourth Revision) and their corresponding new C.D. #'s. Since I have been harping so much about using the new numbers, it has occurred to me that there are still going to be some of you out there buying and selling foreign glass, that won't necessarily have either our new book on foreign glass insulators or the new price guide (See ads for both in this issue.), so the following list is offered as a help to you in the interim. This, however, is only a bare skeleton, because, besides these, Glass Insulators from Outside North America shows many, many new designs never before listed anywhere, plus embossings and countries of origin. We may be putting out supplements till the year 2000, because foreigns could go on forever! Maybe we sort of opened a can of worms, but that's okay! We're having a good time at it, and we're all learning something!

Cross Reference List

Old C.D.#

New C.D.#

Old C.D.#

New C.D.#

121.2

420

*770

441

124.6 (flat crown)

421

773

450

124.6 (round crown)

422

775(same as 179.6)

460

124.7

423

778

470.1

*130.6

427

781

640

130.7

430

783

642

152.9

490

800

678

179

470

*801

679

*179.5

459

802

666

179.6 (same as 775)

460

803

655

184

475

804.3

658

*222.1

572 (not 571)

808

510

*229.5

602

816

505

250.7

590

818

574

755

407

824

531

825

532

*842

578

826

533

*843

569

*828

507

860

600

828.2

563

880

620

828.5

551

881

621

829

552

947

387

830

500

950

399

832

545

960

372

832.1

575

961

373

833

576

966

377

837

535

967

378

838

536

968

379

840

508





*Starred items indicate those located and reassigned since the book "Glass Insulators from Outside North America" was published in August, 1981. Book owners please take note: You may wish to photo copy this page from Crown Jewels and add it to the back of your book; or if you will send me a SASE, I will mail you a typed sheet of the new items, which includes the embossings and countries of origin.

Examples of the following old C.D.'s are still needed for drawings and reassignment. Can you help me locate them?

177

799

827

857

798

804

835

965

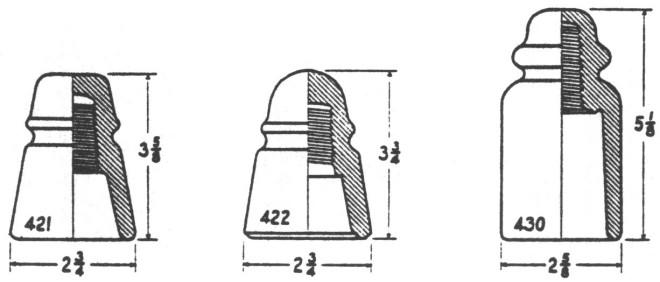

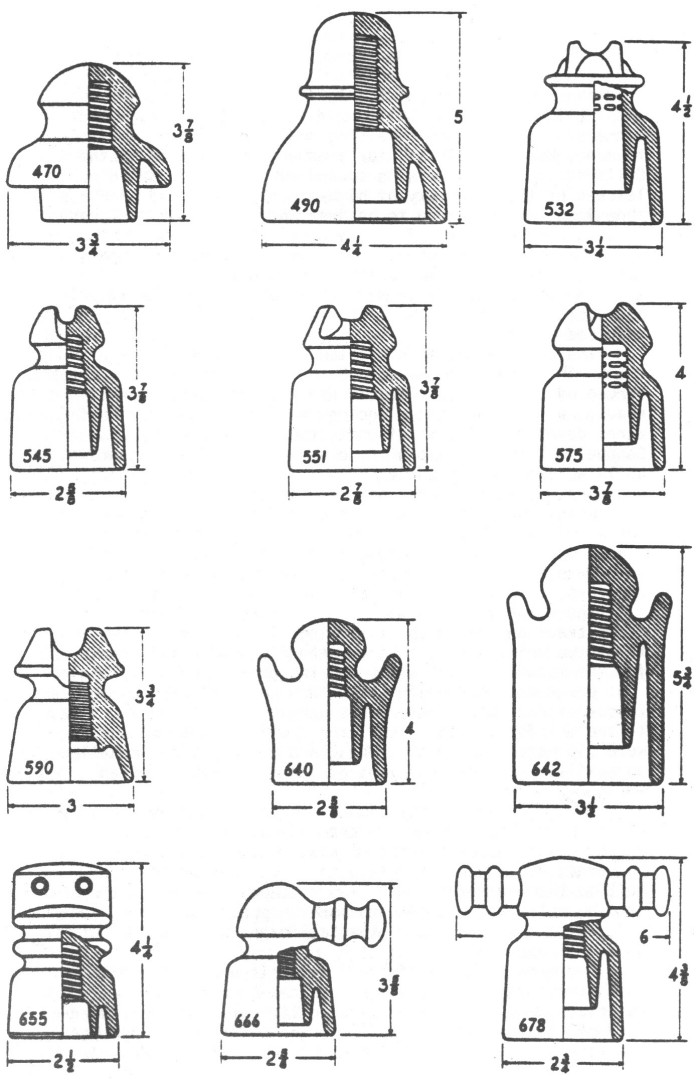

The following drawings show you familiar designs with their new C.D. #'s and are included here only as examples, because sometimes pictures are worth 10,000 words!


Large Image (34 Kb)


Large Image (142 Kb)
