   1988 >> April >> WHITALL TATUM CD 272 A Chronological History

WHITALL TATUM CD 272 A Chronological History
by Richard Wentzel

Reprinted from "Crown Jewels of the Wire", April 1988, page 25

The History of CD 272 power transmission insulators as manufactured by Whitall Tatum and Armstrong Glass Companies begins with a hastily executed memo sent from Whitall Tatum's New York City-based insulator division manager, Mr. V.F. Hammel, to George Bacon, head of production engineering at the company's Millville, N.J. glass factory. Dated December 13, 1937, with notations that the memo had been prepared after working hours, Hammel attaches to his memo a blueprint (Fig. A) of an insulator that will become initially Whitall Tatum's #62, and subsequently be modified to the more familiar #511A.

In the memo, Hammel expresses his desire to receive cost estimates for actual samples, and requests a wood model of the new insulator -- standard procedure for new designs produced at the Millville plant. He notes that this insulator is sought by the Public Service Co. of New Jersey, and that they are anxious to begin production as soon as possible.

Hammel had patterned his new #62 after the design of Lapp's #1929 porcelain power insulator. Considerable excitement was generated by the new design, as it became apparent that this glass power insulator could be produced at a cost of close to 25% less than a porcelain product of similar design.

In order to supply an item visually consistent with the widely accepted porcelain power units, Hammel, by memo dated December27, 1937, directed that cost-estimates for the #62 be based on the use of amber glass, thereby setting into motion Whitall Tatum's initial foray into production of amber-colored insulators.

By January 1, 1938, the engineering department at Millville had prepared the requested cost estimate and wood model. Displacement tests on the wood model showed that the finished insulator could be produced at a weight of 24-1/ 2 ounce, identical in weight to the oldest style of Whitall Tatum's CD 154 No 1's. This weight factor established the potential of producing samples of the new design in conjunction with a run of "old Style" No.1's on Whitall Tatum's standard glass forming (IC) machine, which had a capacity of sending glass to twelve molds.

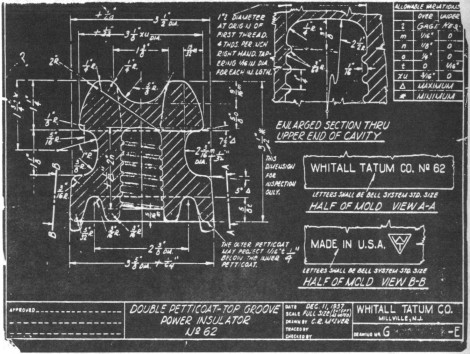

Fig. A. Blueprint of Whitall Tatum Co. No.62 Hammel attached to his memo.

On February 26, 1938, the Mold Shop was authorized to make two machine molds for the #62 insulator. Production supervisors where informed that 200 perfect specimens were required, in amber glass. The two new molds, when fitted to the twelve-section IC machine, were to be augmented by "old style" No.1 molds in the remaining ten positions.

Stopping to ponder this scenario for a moment, consider that the arrangement outlined herein would produce a surplus of amber Whitall Tatum No.1 insulators -- out-numbering the new #62's five to one! Apparently, these No.1's served only to allow Whitall Tatum engineers to determine if their new CD 272 design could be successfully executed on a standard IC machine without going to the expense of readying a full set of twelve molds, as no specific intent of use or potential customer for an amber No.1 is mentioned in any of Whitall Tatum's insulator records.

As a matter of such record, though, when trial production ceased on March 21, 1938 --- Whitall Tatum had manufactured 260 #62's and 1,267 #1's insulators in amber glass. Two days later, March 23, saw 20 #62's and 60 #1's being shipped to Whitall Tatum New York offices for testing. At the same time, arrangements were being made for the Public Service Co. to begin testing 24 #62's and 12 #1's at their Irvington, New 3ersey, laboratories.

These test were apparently successful enough that the Public Service Co., with the inclusion of a few modifications to the overall design, accepted the insulator, and placed orders for quantities of the new design in both clear and amber glass.

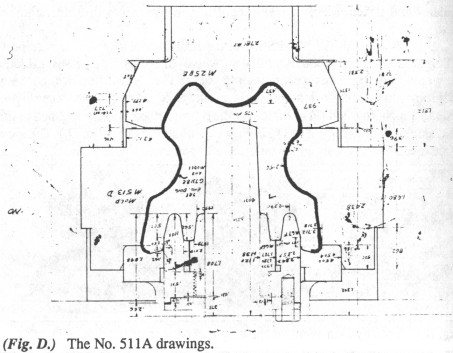

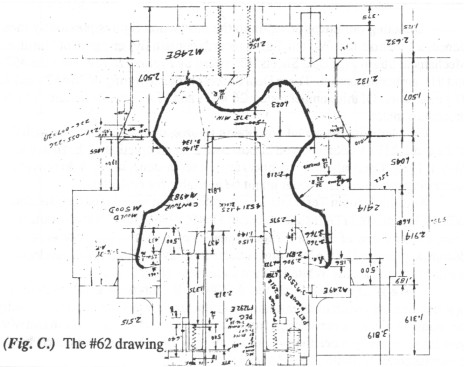

By March 30, the Mold Shop at the Millville factory was in receipt of authorization for production of a full set (twelve) of molds for a power insulator that would from that date forward be embossed #511 A. The differences between the pre-production #62 and the mass produced #511A can be seen in the comparison photograph (Fig. B.) or for the more mathematically inclined in the mold assembly drawings of the #62 (Fig. C.) and the #511A (Fig. D.) The most noticeable differences are in the base contour and the flatness of the cable ears.

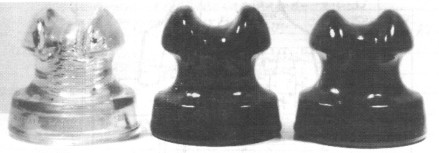

(Fig. B.) Photo by Don Wentzel showing comparison of the three CD 272's.



Directing our attention again to the production figures previously mentioned, let me note that Whitall Tatum records contain fifteen pages of "Insulator Mechanical Strain Test Data Sheets" (Typified by Figures E. & F.) for the #62's and #1's amber insulators. These Data Sheets chronicle testing of 76 #62's and 42 #1's insulators. Of this number tested, 26 #62's and 11 #1's insulators survived the procedure intact.

Coupled with the actual production figures, this would leave us with 210 #62's and 1,237 #1's documented in existence after completion of the final testing May 3, 1938. Certainly these numbers are not set in stone, but they do provide an interesting guideline as to what might be available for collectors.

Additional Stain Test Data Sheets indicate that actual retail production of Whitall Tatum No.511A insulators began May 9, 1938. This insulator would, over time, become one of Whitall Tatum's and later Armstrong's more successful design, as predicted by the following letter from Graybar Electric Co., an electrical supply firm and steady Whitall Tatum customer. (Fig. G.)

As a final note, we can see that Whitall Tatum, as a corporate entity approaching the zenith of its insulator manufacturing years, spent almost exactly six months bringing its new design from inception to production. Make of that what you may, as you ponder the history of the CD 272 insulator produced by the glassmakers of Millville, New Jersey.


Large Image (181 Kb)

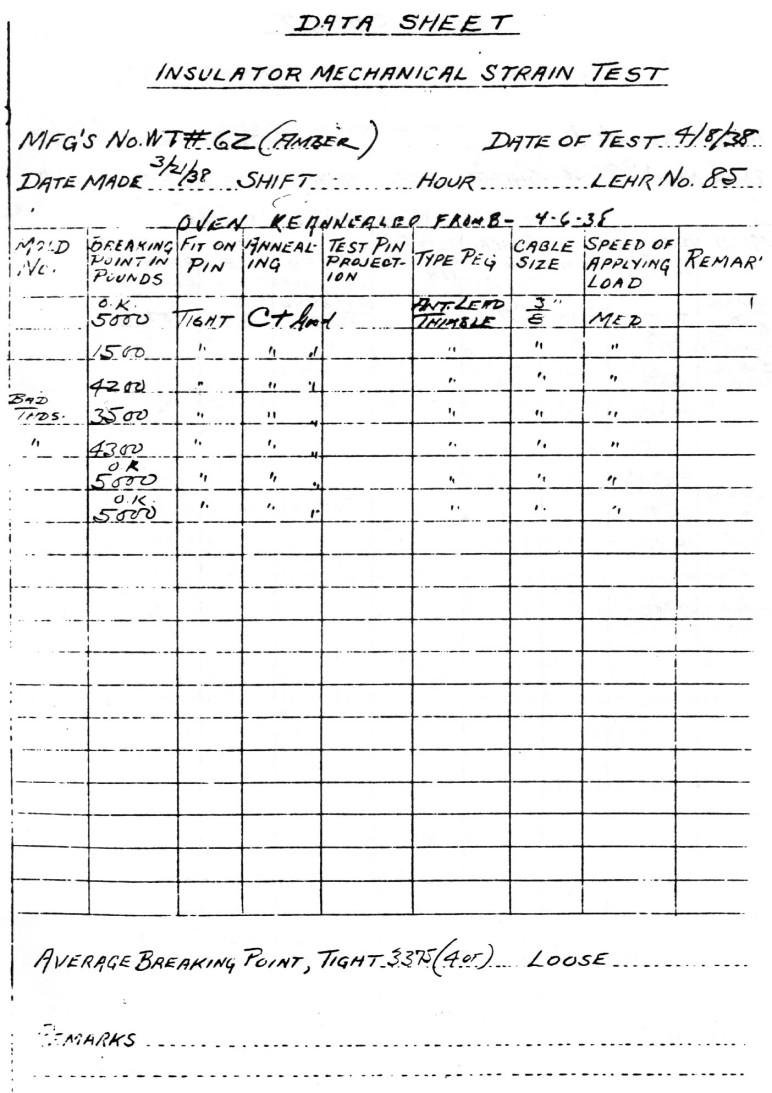

(Fig. E.) Insulator Mechanical Strain Test Data Sheet for Whitall Tatum #62



Large Image (190 Kb)

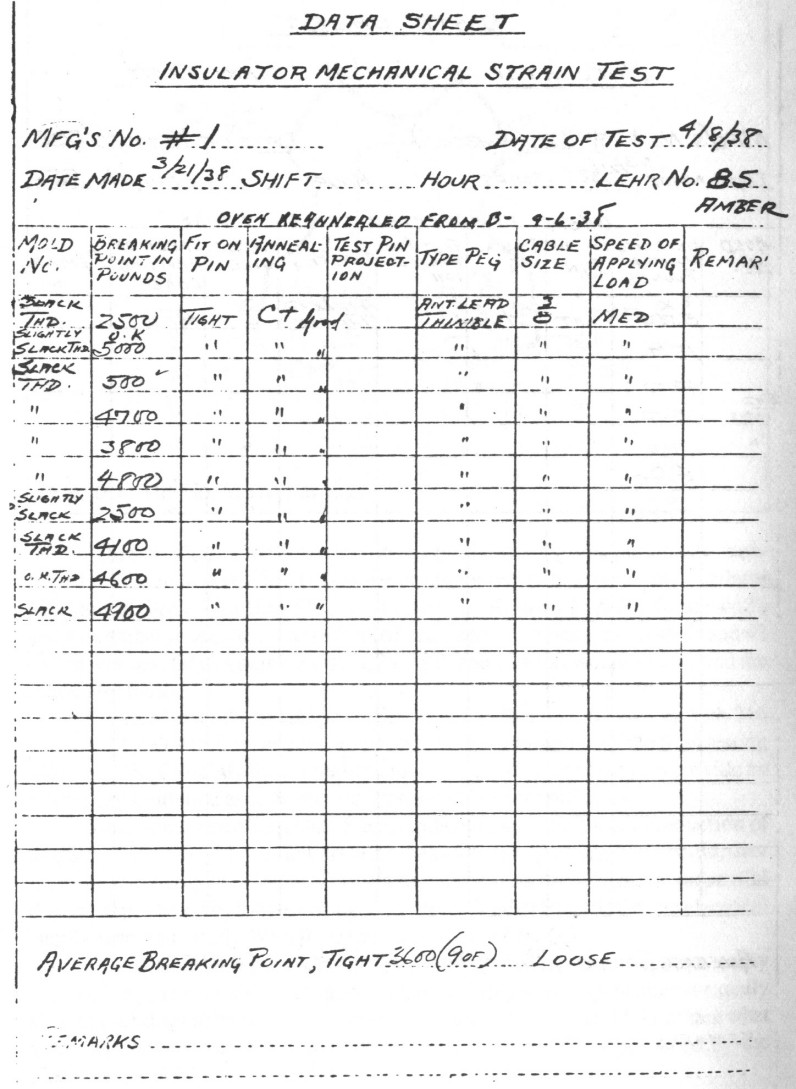

(Fig. F.) Insulator Mechanical Strain Test Data Sheet for Whitall Tatum No. 1



Large Image (173 Kb)

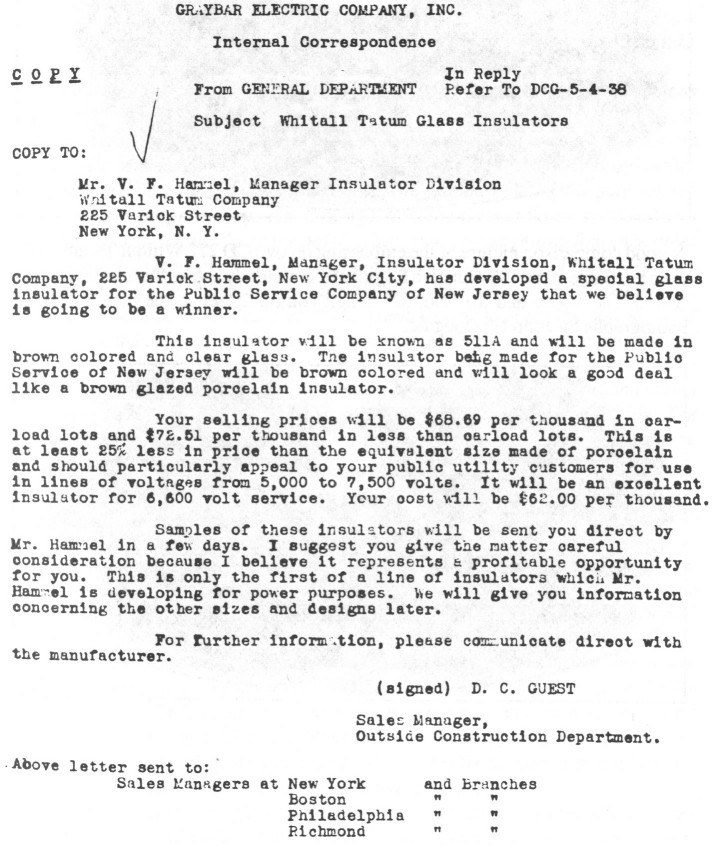

(Fig. G.) Letter from Graybar Electric Company

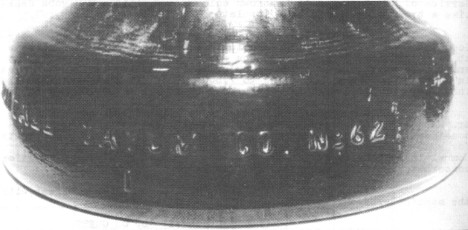

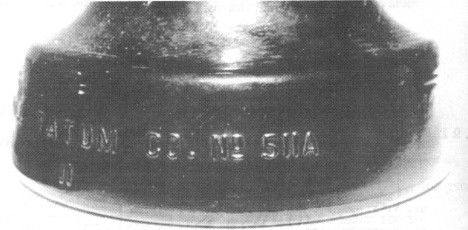

A good comparison picture of the embossing on two CD 272 Whitall Tatums that were available at the 1987 Eastern Regional show clearly shows the more common 'No. 511A" above and the "No.62" which you rarely see in the picture below. Photographs by John McDougald.
