the "California Connection"
by Brent Burger
Reprinted from "INSULATORS - Crown Jewels of the Wire", May 1982, page 9
Well, after surviving
the National in Sacramento this past July, I guess it's time to get back to
business. I must say that it was quite a show. As usual, I starved myself to
save what little money I had brought with me for any insulators that I might
find for the collection -- which weren't too many, as there was a lot of
competition among us CALIFORNIA nuts.
The consolidated CALIFORNIA display came
off beautifully, with over 200 pieces of CAL glass. I owe a great big thanks to
Dave Potts, his wife Suzanne, and Larry Reed and his family for putting up with
them as they pulled off what I had set out to do in the fall of '80 and was
unable to carry through on my own. Thanks, folks, for making a dream come true.
It was a real learning experience for me, as I am sure it was for the other
participants. I also owe a "thank you" to Mr. Grant Salzman for being
so supportive from the very beginning, and for being there when the going got
tough. For my first National, I sure chose the difficult way to do it! Thanks to
all the participants -- Lenny Philbrook, Sid Marques, Ross Huth, Mike Kirby,
Dennis Kotan, Dave Potts, Tom Salzman, Ray Thompson, Jeanne Bridges, Pat
Patocka, Don Harned and Rip West. You folks really know what good glass is all
about! I could rave about that display all day, tomorrow, and on into the next
week, and still not convey my feelings.
By the end of the show on Sunday, four
days of the Bobbie Sands diet plan had taken its toll, and I was ready to get
back to living. By the way, I lost nine pounds (mostly in the wallet)!
Getting
back to the "CALIFORNIA CONNECTION", it seems that somewhere between
myself and "Dear Dora" the U.S. Postal Service has managed to misplace
the "CALIFORNIA CONNECTION" #3, so I will do what I can to rewrite it
here.
After taking out "ponies" and "tramps" for articles of
their own, I was left with the following five styles in the communications
category.
Communications Insulators
TOLLS. Wow! There were some real dandies there in the display at the
National. CALIFORNIA C.D. 121's are pretty limited in color variations, but of
the eight or so colors known, we had all but a couple there. STEEL SAGE (sage
with a blue cast), SMOKE, YELLOW, YELLOW-SMOKE, SMOKE-PURPLE, LAVENDER, PURPLE,
and BURGUNDY. The YELLOWS didn't make a showing, but the rest were there. It was
quite a line up. CAL 121's aren't too tough to come up with in STEEL SAGE
($5-8), and various shades of PURPLE ($10-12), but those SMOKES and YELLOWS are
a different matter. I had never set eyes on a pure SMOKE "toll" before
we started putting insulators in the display. It's a real gem. I've never seen
one of these go for sale, but judging rarity and desirability, I would say they
would be a good fifty-bucker. Like I said, it was a real gem. YELLOWS are tough,
too. I've seen one sell for $25 and heard of another selling for $35. I would
say they are worth at least that. For one of the rarer YELLOWS, most CALIFORNIA
collectors would gladly give $35. CALIFORNIA 121's are one of the few styles
CALIFORNIA made that came embossed with a style number. Centered 1/8 inch above
"CALIFORNIA" is "A 007" embossed in 5/32 inch lettering.
The
"beehive" is another style that comes in a pretty limited color range.
You could always collect 45 different shades and tints of smoke, but when it
comes to stark color variations (BLUE, GREEN, PEACH, etc.), you are cut down
considerably. CALIFORNIA C.D. 145's can be found in SAGE GREEN, PLAIN GREEN,
SMOKE-GREEN (very grey), CLEAR (or very close to it), SMOKE-YELLOW, SMOKE,
SMOKE-PURPLE, and light PURPLES. I have never seen a genuine medium to dark
PURPLE 145. They just don't come very dark when they are a good clear purple
color with no smokiness.
I have seen some dandy treated purples! We call them
"Canadian CALIFORNIAS" around here referring to Canadian royal purple.
I have seen several styles of CALIFORNIAs in this color including the beehive.
GREEN and CLEAR beehives usually price between $5 and $10 on sales tables around
here, and it's not too hard to find them on the lower end. The SMOKES and
PURPLES hold $5 to $15 depending on color. Good PURPLES go a little higher than
the smokies. $15 is a little high for most, but for a good color I would hold no
qualms about pitching out 15 clams for one. I have yet to see a good YELLOW
(gold) beehive, but I have seen a SMOKE-YELLOW one, so I think they exist.
I
have a strange peachy colored 145 in my collection, and I wonder if they were
ever found in a good strong PEACH? The SMOKE-YELLOW beehive I know of sold to
its present owner for $20. If you could get one with more color, it would
undoubtedly be worth double that. Does anybody out there in insulator-land have
a good YELLOW or PEACH CALIFORNIA beehive? You have an interested party here.
Drop me a line.
One last color variation here. CALIFORNIA beehives have been
found in a two-tone GREEN and SMOKE-PURPLE. This is a fairly tough two-tone to
find, and they have sold in the $25 to $30 range in the past year or two. Most

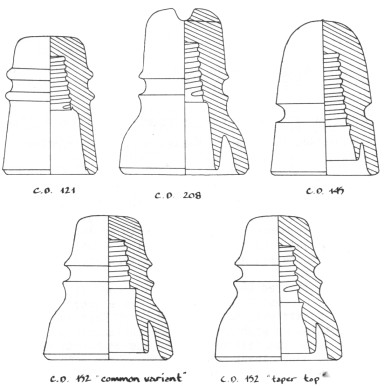

of the C.D. 145's in my collection have a "point" or
"button" on the dome (see diagram); however, some do not. I checked
around sales tables at the last couple of shows I have been to, and it looks
like about 80-90% of CAL beehives do have this button. All my beehives are
embossed in type very close to 5/16 inch.
"HOOPSKIRTS". C.D. 152.
CALIFORNIA made two styles of "hoopskirts", the common variant, and
what I call the "taper top". The "taper top" is somewhat
difficult to find. They are only found in BLUE and AQUA. The difference between
the two is in their shape. The "taper top" has a more tapered skirt
and dome than its common variant counterpart. It might not be obvious to some
people unless the two are set side by side. The "taper top" is
slightly smaller than the common variant, but when set side by side the
difference appears much bigger than it actually is because of the added
"heft" in the more squarish looking dome and skirt on the common
variant. The difference is not a big one. These "taper tops" have a
peculiar base that is also worthy of note. This base is unlike any I have seen
on any other style of CALIFORNIA. Where the common variant has a round base like
most insulators, the "taper top" has a flat base that tapers upwards
and inwards to a sharp edge on the inside (see sketch).
There are two CALIFORNIA
styles that have odd bases. This is one. The other is the C.D. 201
transposition, and although these two vary from the usual round base that
CALIFORNIAS have, these two are quite different from each other. It took me a
long time to get a "taper top" hoopskirt. When I finally did, I got a
bunch of them. I kept three for my collection and sold the rest. I sold every
one I had for $15. I hadn't seen any prices on these before, so I took a stab in
the dark. They sold, so I guess that is what they are worth (BLUE or AQUA). I
wouldn't ask much more than that for one though.
The common variant can be found
in AQUA, SAGE GREEN, PLAIN GREEN, CHARTREUSE-YELLOW, GOLD-YELLOW, SMOKE-YELLOW,
CLEAR, SMOKE, SMOKE-PURPLE, PURPLE, PEACH, and TWO-TONE (GREEN and
SMOKE-PURPLE). I thought it was quite a coincidence that the "taper
top" only comes in BLUE and AQUA, and the "common variant" came
in all known CAL colors except BLUE and AQUA -- until I found an AQUA common
variant at the Portland show. No doubt this common variant (C.V.) in AQUA is a
sleeper. In all my years of collecting (since '70), this is the first one I've
seen. It's not a very noticeable insulator in itself because of the color, but
it's fairly scarce. I hate to hazard a guess on value -- maybe $5-$10. For all the
hoopskirts I've seen, the "taper top" is ten times as common as this
one, so ?? Just try to get $150 for it!!
With exceptions given to the YELLOWS,
PEACH, and TWO-TONE, the hoopskirts price in the $2-$10 range. The SMOKES and
PURPLES always do better than the GREENS price-wise. The two yellows I have seen
sell took $10 and $25. Good PURPLES can always be found for cheap, but a fair
market price for a good one would lie somewhere in the $6-$10 range. PEACH is
tough, and is certainly worth $25. Same goes for a good TWO-TONE. The hoopskirt
is THE most common CALIFORNIA style. It reflects somewhat in the value of the
better color. PEACH is a hot color in any style, but a hoopskirt won't get half
the price a 133 or 121 will. Same with the YELLOW. There are just too many hoopskirts around, and most collectors are tired of them.
The C.D. 208 is one of
my favorite insulator styles. I am sure glad CALIFORNIA made them! The
"X-TOP" is a "mountain insulator", designed for use in
mountainous areas and other areas where long pole spans and heavy strain loads
would be encountered. The "X-top" is nothing more than a beefed-up
hoopskirt with a top-tie. The top-tie wire groove, when used, kept the line wire
from slipping down under heavy loads, as a side-tie would be likely to do.
Mountains pose a problem to maintenance of ANYTHING in the winter. I don't think
the phone company enjoyed having to send crews up into the hills on foot
(because their trucks could not get through the snow) to fix a line downed or
broken by snow or a fallen tree.
They built their lines through the tough areas
with heavier equipment than usual, and this is where the "X-TOP" was
designed for use. Like the rest of the equipment they used there, the
"X-TOP" could stand up to a greater amount of load and strain. When a
"CROSS-TOP" was used as it was designed to be, it was incorporated
with a unique tie-wire that was first tied around the normal wire-groove, and
then wrapped up over the top to hold the line wire that was lying in the
opposing top wire-groove. I will see what I can do to get a picture of one with
the original tie-wire still on it, and put it here in CROWN JEWELS.
The C.D. 208
comes in two styles. Both are the same, except for the embossing. One comes with
3/8 inch embossing, and the other comes with 1/2 inch embossing. The 1/2"
embossed style is a little rarer than its 3/8" counterpart and is only
found in SMOKE-PURPLE. The 3/8" embossed style has a little more color
variation, but not much. You can find the 3/8" style in YELLOW, SMOKE-YELLOW, and SMOKE-PURPLE. I have two reconstruction projects in different
shades. One is a darker and more purple color than usual, and the other is
two-tone (YELLOW and PURPLE). The most common "X-TOP" is the 3/8"
embossed SMOKE-PURPLE one. It generally sells for $25 to $35 when mint. The
1/2" embossed style usually goes for a little higher -- maybe $35 to $40.
Those YELLOWS and the TWO-TONE, they are tough items. I don't think $150 is too
outrageous for one of these. They are a lot rarer than a PURPLE or YELLOW
helmet, and those are worth a good $150. I paid a crisp "Ben Franklin"
for my SMOKE-YELLOW 208. My 3/4 of a two-tone was given to me, but I have
offered an amber EC&M straight across in trade for a (gold) YELLOW "XTOP"
and been turned down. What can I say?! On some of the rare stuff like this, it
is tough to put a price on them. You are at the mercy of the seller if you have
to have it.
'Til next time.
Take care &
Good Collecting,
Brent.
|
