"Threadless Corner -- The 732"
by Ray Klingensmith

Reprinted from "INSULATORS - Crown Jewels of the Wire", May 1978, page 6

The CD 732 unembossed threadless has held a special appeal to me for some time. In purchasing my first jewel of this CD# three years ago, I was totally unaware of all the variations and interesting facts concerning this item. I guess the most noticeable factors were color and size variations. Let's cover the size variations first.

The most often encountered size seems to be the 4 inch (approximate) tall ones. This size is found in various colors. Next we have the 3-3/4 inch variation. These seem scarcer, and all I've seen were of a light lime-mint green color. After this we have a few "odd ball" sizes. I have seen a beautiful jade green item measuring 4-1/16 inches tall. The tallest unembossed "732" I've run across is a monster 4-7/16 inches tall, which is a "ginger ale" color. The first impression of these varying sizes would lead one to believe they were made in different molds. But they weren't! Every unembossed CD 732 of the 3-piece button mold variety I've seen came from the same mold.

You may wonder how I can make this claim. In looking these jewels over closely, I noticed they all had one thing in common: they had a series of lines running in the same patterns (see drawings), especially noticeable on the dome. Why these "lines" appear on the insulators is a mystery. These lines are not recessed, but stand out from the body of the insulator just a fraction of an inch. Also, in the wire groove (see fig. 1) can be found a small projecting piece of glass. This varies in size from almost non existent to almost 3/4" long, and stands out up to 1/16" from the wire groove.

Three varying sizes. From left to right: 4" medium green, 4- 7/16" "ginger ale", 3- 3/4" lime-mint green. (Notice how the pinhole extends into the dome on all three pieces - same distance from base to top of pinhole.)

Courtesy of Bob Pierce This is the crude and beautiful jade green, 4- 1/16" tall variant.

All the information so far may seem of little importance to some, but it brings forth a few questions. First, it indicates one manufacturer supplying vast areas with this style. I have confirmed its use in various locations of New York, Pennsylvania, Ohio, Michigan, Georgia and Florida. It undoubtedly was used in other states also, and was manufactured more than likely over a somewhat long period of time in fairly large numbers. Second, it raises a question: How could there be different sizes if all were made in the same mold? The first idea which comes to mind, is that the shorter size was made first; then an extension was added to the mold to gain the height for each of the taller styles. But after a lot of study, I've come up with another idea. I think one mold was made, with the cavity in which the glass was poured, perhaps 4-1/2" high (or higher). Now, let's assume 14 ounces of molten glass were poured into the mold, and the plunger inserted. The threadless pinhole, the inner portion of the skirt, and the base of the insulator were formed in that operation. The result: a "short" insulator. Now, assume 16 ounces of molten glass were poured into the mold instead of 14 ounces. The result: an insulator of medium height. Now, assume 18 ounces of glass were poured into the mold. A tall version would be the result. (The number of ounces referred to above are just examples, as I didn't actually weigh them.)

An interesting thing to point out at this time to help confirm the above theory is the fact that when viewing these insulators, it's approximately 3-5/16" from the base of the insulator to the top of the pinhole. This indicates the plunger was inserted until the pressure of it forced the molten glass against the sides of the mold. At that time the insulator would be completely formed. All this is hard to explain, and I hope it isn't confusing.

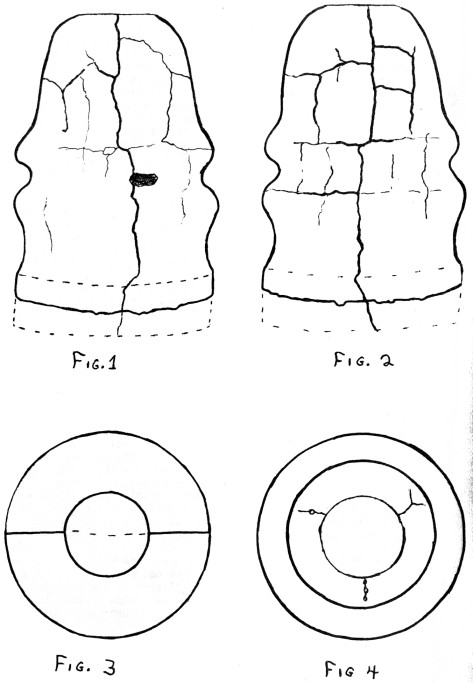

On the following page, figure 1 shows the "lines" forming a pattern on the insulator's surface, and the "glass spot" or projection in the wire groove. The mold lines would be to the extreme left and extreme right of the drawing. The dotted lines show the shortest and tallest versions. Figure 2 shows the opposite side of fig. 1. Figure 3 shows the top view. The lines show the mold lines as they come up the sides of the insulator to the flat top, forming the so-called "three piece button mold". The dotted line shows the location of the mold line if it were on a mold-line-over-dome version; Figure 4 shows a base view. Notice also the three evenly spaced lines which run from the entrance of the pinhole to a point near the base. These are similar in characteristics to those found in figures 1 and 2. They are evenly spaced, which indicates they represent some use in manufacture.

All the previous information covers the unembossed "3 piece button mold" variety. There also is a 2 piece mold item (mlod, or mold-line-over-dome). This does not have the "lines" on the surface, as it came from a different mold. Of the few specimens of this type I've viewed, all but one were of a beautiful rootbeer amber color. One was a blackglass green.

I should make note that I have not included the embossed CD 732's in this article, as they will be included in a future listing.

So far I have seen or have had reported to me five different height variations and several different colors. The colors are: jade green, "ginger ale", true medium green, light lime-mint green, aqua, green aqua, green aqua full of milky streaks, light blue with milky streaks, and jade green full of milk. These are of the 3 piece button mold. The two piece mold comes in rootbeer amber and blackglass green. I may note the following descriptions of colors used above: Ginger ale-This is the color of ginger ale in a clear glass, only a darker shade. True medium green - The color of the common "green" crayon. Light lime-mint is about the color of a candy mint.

As far as the manufacturer of these is concerned, we have no positive information. The widespread use of these suggests a manufacturer well known in the field. This style was in later years produced (threaded units) by both Brookfield and Hemingray. Hemingray made use of the 3 piece button mold on the threaded units, which indicates one possible source of those; but that doesn't make any positive ties. So, at the present, their manufacturer is unknown.

In conclusion, may I suggest this could possibly create one of the largest potential collections of one style in threadless, considering all the color and size possibilities. Most of the 732's seem to fit into the 4" tall class. This indicates the glass was carefully measured. Different times of manufacture may be responsible for the height variations, as each could have been carefully measured. Let's hope whatever they used to measure the amount of glass with, didn't come in very many size capacities, or we could end up with an endless amount of different heights, and it would be hard to distinguish where one height started and left off. I might also add that the lines are not always clearly visible on the surface, due to the "whittled" effect or wavy surface caused from temperature changes and manufacturing techniques. The "lines" are there. Look real hard!

If anyone has any variations to report, or if anyone other than myself has taken on the project of trying to build a large collection of these, please let me hear from you. My address is: 709 Rt. 322, Fast Orwell, Ohio 44034.

For their help in confirming variations on these items, a big thanks goes out to Bob Pierce, Dick Bowman and Fred Griffin.

Next month (hopefully) the item in "Threadless Corner" will be the NY&ERR.

"Update"

I no sooner opened the mailbox and found my February issue of Crown Jewels, which featured the "Bennington" threadless, when I learned of the second known specimen of this rare and beautiful threadless. Seems as though an individual from Massachusetts ran across the jewel in his home state. Although I don't have all the details on this item, I believe it was used on one of the early lines between New York City and Boston, Massachusetts, because of its being found in the location of one of those lines.
