Although my main field of interest is collecting railway telegraph insulators, I recently came across some unusual and undocumented non-railway types which are worth recording before the details are lost forever.

- - - - - - - - - - -

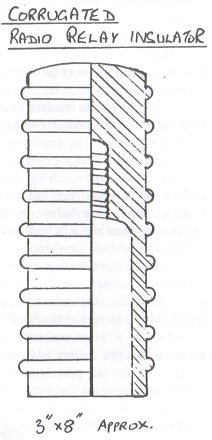

I first noticed three distinct new types in the small Yorkshire market town of Ripon. These I shall refer to as "short", "tall" and "corrugated" radio relay insulators, although I did not know their original purpose at first.

I have since discovered that many towns in the north of England including Manchester, Blackburn, Hull, Skipton and Keighley have got these short radio relay insulators, usually hidden away high among the chimney-pots. Further research has led me to discover more about these mysterious insulators, and the history of the radio relay system in England.

Although an early experimental radio transmission was made in Germany by Hertz in 1886 and speech was first broadcast in 1906, the first regular radio broadcast stations were not operational until 1921. The receiving equipment was bulky, relatively expensive and outputted to headphones only. It was not until the widespread introduction of the loudspeaker (courtesy of Rice and Kellogg in the U.S.A.), that radio really took off, in the mid-1920's.

It appears to have been common practice in urban areas of England to "pipe" the radio signals from a central receiver (usually in a local radio shop) to houses, cinemas and factories. Presumably it made economic sense at the time, and also many premises were not connected to main's electricity until many years later. Thus the idea of cable TV is not a recent one.

The radio relay systems included transmission lines and insulators were installed by private contractors, who were quite independent of the broadcast stations (The BBC) and from the telephone company (GPO). I believe the lines and equipment were leased to the individual listeners. These local radio relay networks continued to be used until after the Second World War. The advent of television and the transistor radio, no doubt providing too much competition, most relay systems fell into disuse and were dismantled in the 1960' s. The copper wire went for scrap but many an insulator still remains.

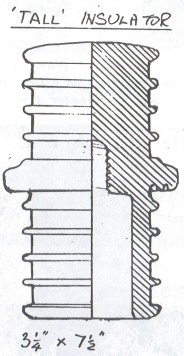

The three known radio relay types are illustrated here. Examples of the tall insulator were retrieved for me by the local telephone company (British Telecom: York) with the aid of a crane, and I must thank Les Wareham for their safe removal. All of the insulators found were manufactured from porcelain and glazed in various shades of brown. Some were marked "MADE IN ENGLAND" and others had the Bullers Ltd. trademark. One was dated 1949, but other examples seemed to pre-date this and are probably some original 1920/1930 types.

Just why these insulators have been designed in such complex shapes is a bit of a mystery. The small radio relay insulator is somewhat similar to U-1898 but is smaller and much more complex. The tall insulator and the corrugated type have never before been documented, even in Keith Neal's books on British telegraph insulators.

It's a great feeling to be able to discover something which has remained forgotten for years, and even better to be able to bring the results of this research to a wider audience. Not to mention a few further additions to my growing British porcelain collection! The author would like to thank Carol of "Crown Jewels" for her encouragement to write this article.
