I recently received an inquiry regarding the Southern Porcelain Co. of Kaolin, South Carolina. In the book, Marks of American Potters, a reference is made that the Southern Porcelain Co."...manufactured Parian and fine white china to a limited extent between 1856 and 1862. They also made brown stoneware telegraph insulators." Could this be the manufacturer of the Confederate teapot (U-990), the slash top (U-988) and the egg (U-970)? I would appreciate hearing from anyone who may have additional information. Southern Porcelain used the incuse marking shown above on their china ware.

In Porcelain Insulator News in the December, 1988 and April, 1989 issues of CJ, we talked about the mushroom-shaped "whatisit" insulator shown above. I did find one reference to this insulator in the 1926-27 Ohio Brass catalog. A picture from this catalog was shown in the April issue which shows the arrangement like the photo sent in by Vincent Yeasted (shown below). Little information was in the catalog regarding this insulator other than the reference that it was part of an "Ohio Brass flux [corona] control."

Otto Boll sent Xerox copies of a few pages from his Ohio Brass catalog No.24 (circa 1940). The drawings (reproduced on next page) do show another use for the "mushroom" insulator. Keep in mind that this arrangement is different than that shown in the photo by Vincent Yeasted and used on the bottom of suspension strings. This arrangement was called "O-B Control Gaps". Control gaps provided equipment protection from direct lightning strokes at substations. Below is a quote from the Ohio Brass catalog description:

"The fast action of O-B control gaps is obtained through the ingenious design of the electrodes and shielding, a design which combines the desirable characteristics of both rod and sphere gaps. A relatively uniform dielectric field is obtained by means of porcelain insulated electrodes surrounding the arcing terminals. These control electrodes are so placed that while they increase the effective electrode areas, they are insulated to prevent flashovers at other than the arcing terminals.

The selected protection level of the gap will remain unchanged indefinitely as porcelain is the only dielectric material used and a controlled air gap is the only resistance or impedance placed in the discharge circuit."

Note that there was a short skirt version shown in one of the drawings. This idea must have had a very limited use as it was not shown in other O-B catalogs.

Ohio Brass "Control Gaps"

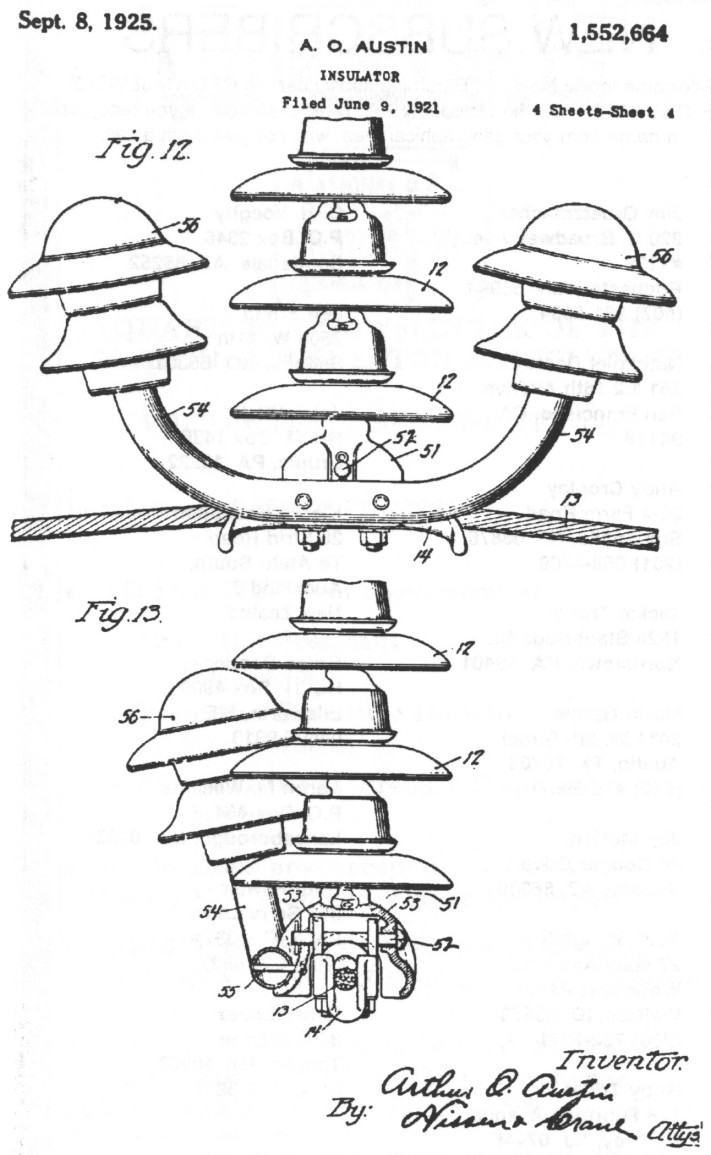

On a recent trip to the local university library, I was doing some quick research in the "Official Patent Gazette". While flipping through the pages of the September, 1925 volume, a patent drawing caught my eye. Now this was my lucky day! It was the patent for the "mushroom" insulator! ! ! The patent described in detail the use of this insulator as part of an 'insulated flux control" system for controlling the electrostatic flux distribution of a suspension string. The four pages of drawings with the patent show various forms of the "mushroom" insulator, some with metal caps. All of the drawings (two pages of patent drawings shown on the next two pages) show multiple or multipart insulating "caps". while the exact style of the "mushroom" insulator is not shown, this patent does indeed describe the purpose of the "mushroom" insulator.

There was a reference to a prior patent application for a "single insulating cover". Finding that patent, if it was ever granted, may be difficult since I do not know if a patent was granted, or when it was granted. I will continue to search for that one in the future and keep you updated if I am successful in locating it.

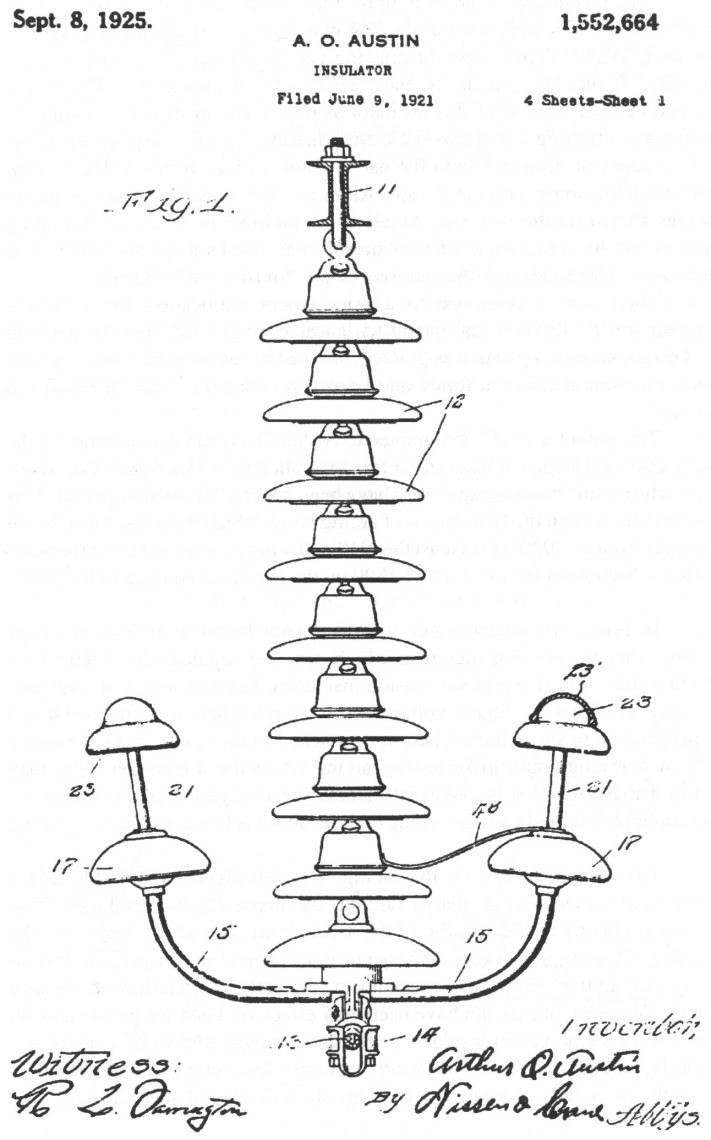

This patent is 1,552,664 granted to Arthur O. Austin and assigned to the Ohio Brass Co. The patent text only refers to application to suspension insulator strings. The use in "control gaps" may have been covered by another patent. This patent may have been the first design of arcing horns which were cataloged by all companies from the 1920's to at least the 1940's. Arcing rings were first introduced in 1910 by Nicholson for use with M-3890 on the line from Niagara to Syracuse, NY.

In brief, this patent states that the metal horns with insulator caps constitute flux distributing members which serve to regulate the electrostatic gradient in the main string of suspension insulators. In other words, the suspension string would have a higher voltage at the bottom where it is attached to the conductor and a lower voltage where it is attached to the tower. During voltage surges such as a lightning strike nearby, arcing across the suspension string may result in damage to the suspension insulators. The voltage difference across the string could be lessened with the arcing horn resulting in fewer and less damaging arcs.

The insulated caps on the arcing horn were used to provide added security against electrical discharge (arcing) by increasing the insulation. This seems contradictory to the purpose of the arcing horn. The arcing horns are like electrodes, allowing the electrical charge to jump around the suspension insulators. By placing the "mushroom" insulator on the end, would reduce the chance of arcing. This system may not have been very effective. I can see problems with puncturing of the porcelain insulator or extreme damage to it from a single arc. Obviously, a better approach was found by simply designing the arcing horns to achieve the desired protection. The catalogs show dozens of such designs.
